Plant Equipment

Geothermal Production Equipment

We have many experience in Japan of geothermal equipment manufacturing and wellhead piping. We are not only new piping, also has been conducting repair of existing piping. We have a few qualifications of power generation for piping welding work in Japan, continues to hold the high technology.

Geothermal Production Equipment

Heating system by hot water Unit -Sales Gas-

This equipment, if it is not required a large amount of heat enough to use the indirect heater in gas pipelines, it is possible to utilize the hot water boiler and the heat exchanger, it can enable more efficient heating.

Heating system by hot water Unit

Glycol regeneration equipment

Regeneration by removing the moisture in glycol.

Glycol regeneration equipment

Ammonia absorption refrigeration equipment

The dew point depreciation system of natural gas, using ammonia as a
refrigerant.

Ammonia absorption refrigeration equipment

Reduction of Vapor Pressure (R.V.P) – Oil –

This device can separate the active gas such as a small amount in the oil by warming, can suppress the vaporization of the oil storage tank and during transportation.

Equipment Name

Gas Filter

This equipment is used to remove the dust and dirt of inside the sales gas pipeline. It is installed in a sales target for each pipeline and each branch station. It is possible to cope with a variety of types(vertical type, horizontal type, quick closure type,…).

Gas Filter

Oil and Gas Heat Exchanger

This equipment is not limited to the cooling or heating of gas, is used in a variety of applications. NIHON SEIKI is good at the type of Shell-and-tube, such as floating type, fixed type and a variety type of structures can be manufactured.

Oil and Gas Heat Exchanger

Oil and Gas Heater (Indirect Heater)

This equipment is indirect heating to compensate for the temperature drop that occurs when a predetermined pressure to be lowered by pressure reducing valve is installed down stream the well fluid.

Oil and Gas Heater (Indirect Heater)

Natural gas Dehydrator

This equipment removes moisture and impurities which are contained in natural gas.
There are the two main dehydration methods (use Diethylene glycol, Triethylene glycol) of gas, NIHONSEIKI is good at method by bubbling in the Absorber (use Triethylene glycol).
Before processing gas is sent to the Inlet Scrubber at the beginning, it will remove dust and condensate. Next, the gas is send to the Absorber, moist gas is brought into contact
with the glycol by passing through the bubble cap tray, glycol will absorb the moisture in the gas. Dry gas is treated as sales gas from top of the Absorber and rich moisture glycol sent to the Regenerator, removal of water by heating in the Reboiler, less moisture glycol is supplied to the absorber again.

Natural gas Dehydrator

Oil and Gas Separator

In order to separate the oil and natural gas (water, emulsion, etc.) from well fluid, and is held a certain period of time in the vessel. Natural gas that has been separated is supplied to the downstream equipment through the demister.

Oil and Gas Separator

Compact Heater

This equipment made downsize and movable conventional indirect heater. Features of the device can be easily moved to the place of use, you can use immediately. It’s also more excellent in soundproofing, so it can be used surely even near the housing.

Compact Heater(Exterior)Exterior

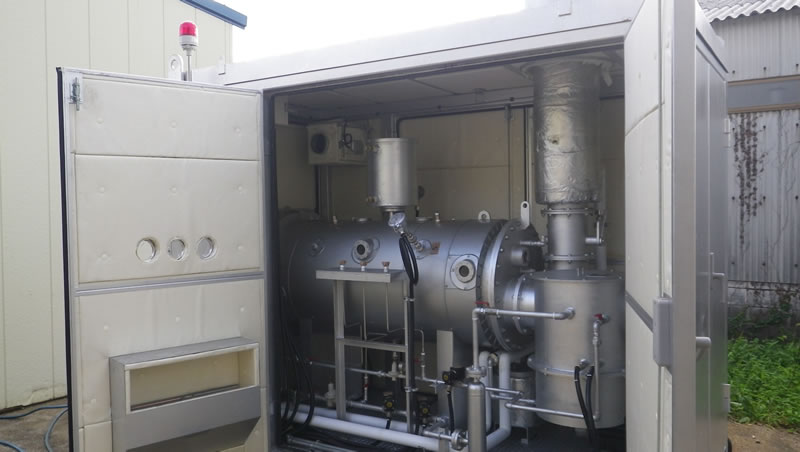

Compact Heater (Interior)Interior

Orifice Fitting

This product is possible to calculate the flow rate by passing the gas to the orifice plate which is provided inside. The method of calculation is following with the provisions stipulated in JIS M 8010 “natural gas metering method”

Orifice Fitting

High-pressure Choke valves

This product can control the flow which produces high-pressure well fluid.

Standard product is manual operation, but there is an option that can be flow controlled by remote from a central control room. The control method has a unique program that con siders safety that can deal with any trouble. It is obtained from the rich experience of until now. Flow control accuracy makes possible to ±2,500Sm3/D at gas flow rate.

High-pressure Choke valves

Mechanical Equipment

Electric Device In Line Inspection Equipment

This equipment can be measured the temperat ure characteristics of the pressure sensor in the range from low temperature to high tempe rature, and enable to identification and classification.

Electric Device In Line Inspection Equipment

Auto Food Packing Machine (Japanese Food “Natto”)

The machine is only supplying the soybeans as
the material, can automate the all process following :

  • material supply combined to cup capacity
  • arranged in sales trays
  • Individually wrapped
  • final packaging
Auto Food Packing Machine (Japanese Food

Sputtering Equipment In High Vacume

This equipment is a development product to make a thin film to the optical and electronic semiconductor substrate by cooperation of industry, universities and administration of Akita Prefecture.

Sputtering Equipment In High Vacume

Auto Fold Packing Machine

This machine is packaging of moist cake.
Although this Special folding is difficult to automate ever, It was possible in our efforts.

Finished product
Auto Fold Packing Machine (Finished product)

Auto Fold Packing Machine

Sulfuric acid concentration analyzer

Sulfuric acid concentration analyzer
